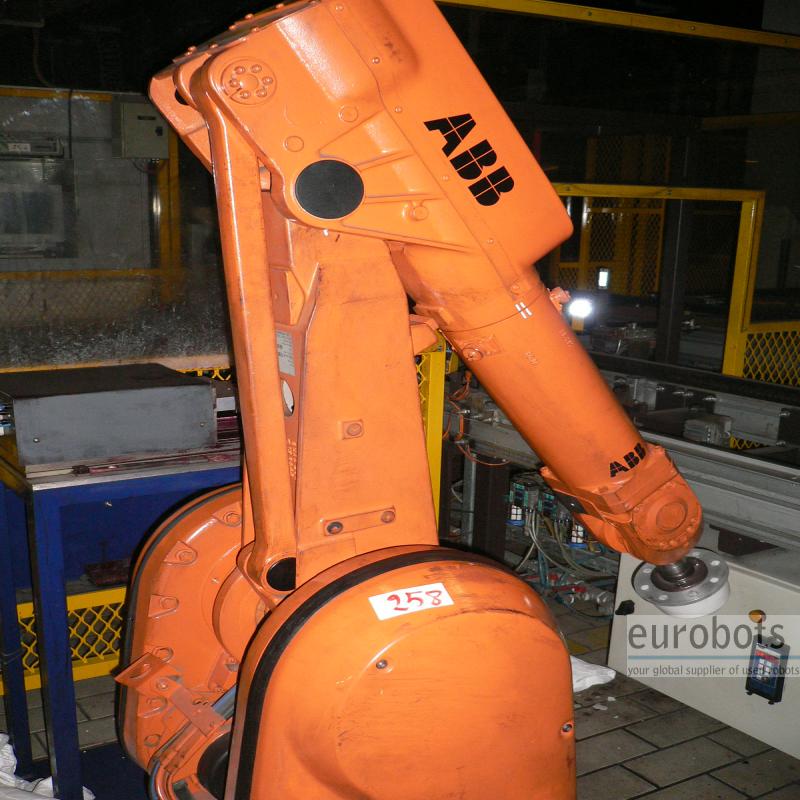

ABB IRB 2400 M94A

Awaiting more stock

सूचना
विनिर्दिष्टियाँ

The ABB IRB2400 is one the top robots of ABB in their recent story. This small payload robot is ideal for applications that required short time cycles and high precision. Arc welding is also a very common use for this type of robot. The S4 controller enables the RAPID programming instructions making programming easier.
Mft. Year: 1995-1997.
Mounting position: Floor, ceiling

Robot Info:

Maximum Load of Robot: 10Kg.

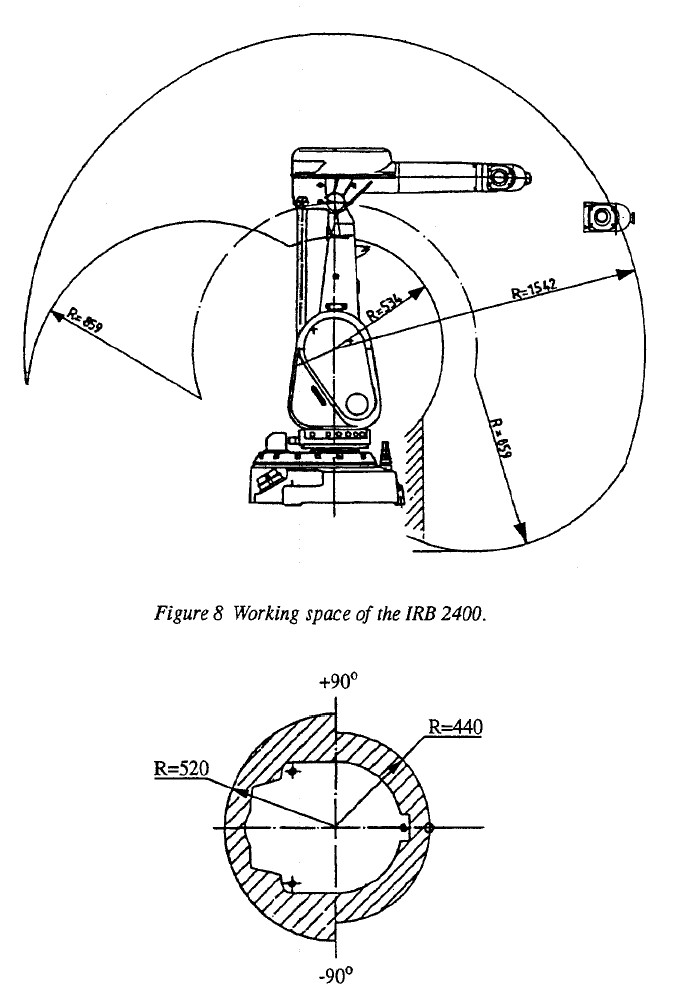

Maximum Reach: 1500 mm.
Repeatability: 0,2 mm.

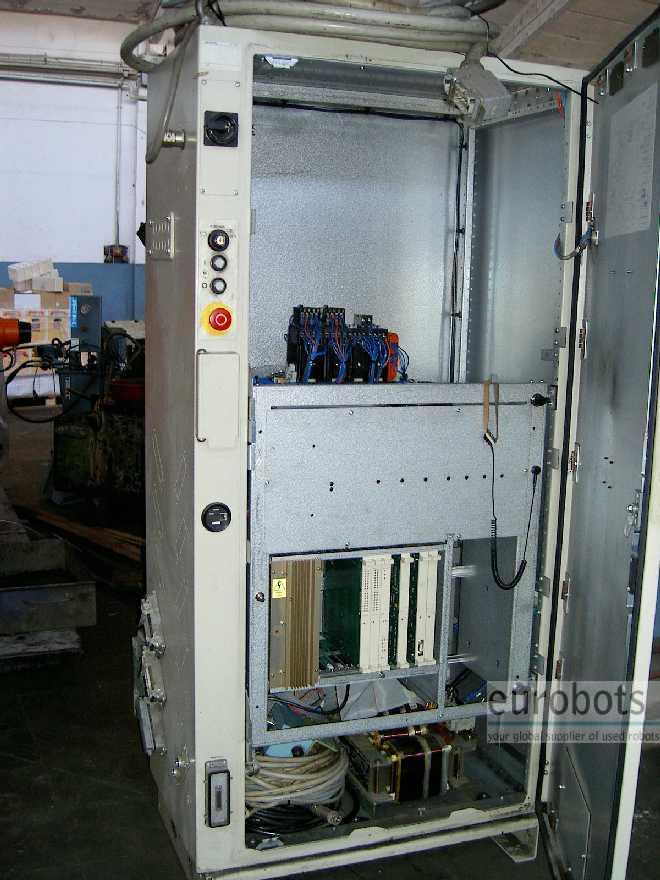

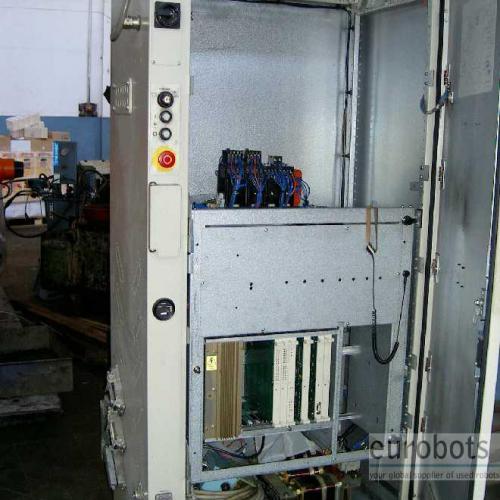

Controller: M94A-M96 S4.

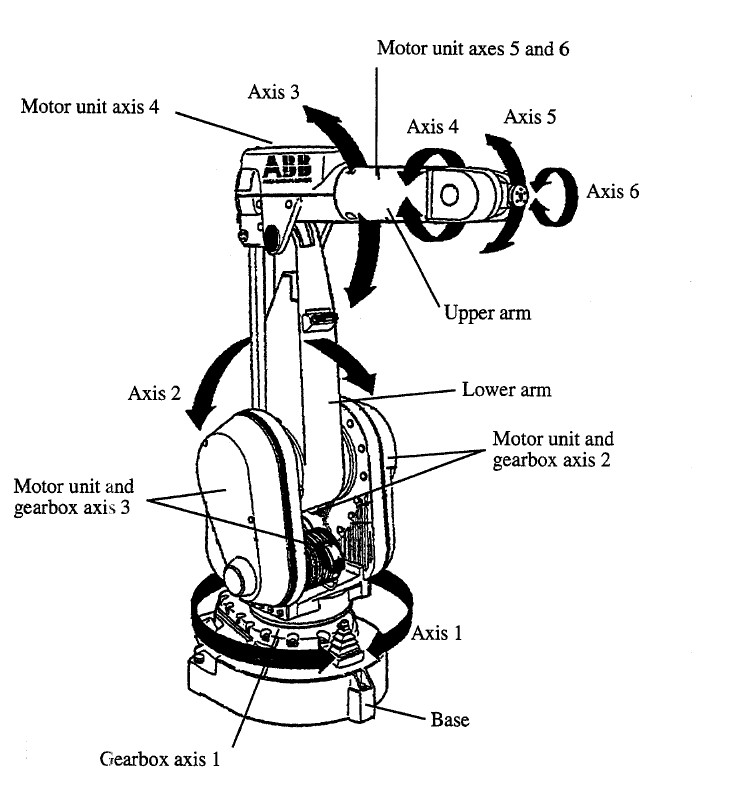

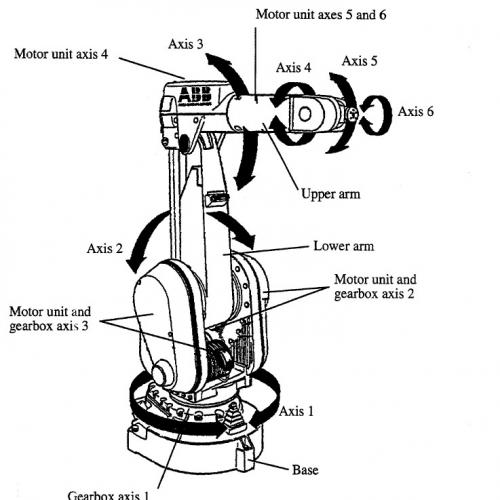

Robot Motion Speed:

Axe 1: 115º/seg
Axe 2: 115º/seg
Axe 3: 115º/seg
Axe 4: 280º/seg
Axe 5: 300º/seg
Axe 6: 300º/seg

Robot Applications:

Arc welding
Machining
Machine tending
Polishing, grinding and deburring
Coating and bonding
Handling
Measuring and testing
Assembly
Palletizing and order picking
Cutting

उपयोग

Pengelasan busur , Lukisan , Memuat dan membongkar suku cadang , Mesin , Penanganan suku cadang
